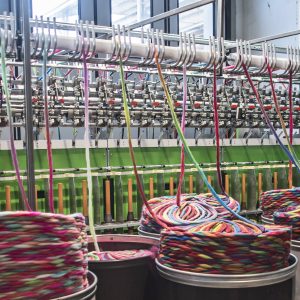

Yarn twisting machine of the production of fancy twisted yarns of the top quality (bouclè, frisè, knot, slub…) with hollow spindle system and take-up on tube.
This model is mainly used for the production of quality medium fine yarns, which requires a soft and more volominous final look.
Thread-twisting machine for twisted fancy yarns.

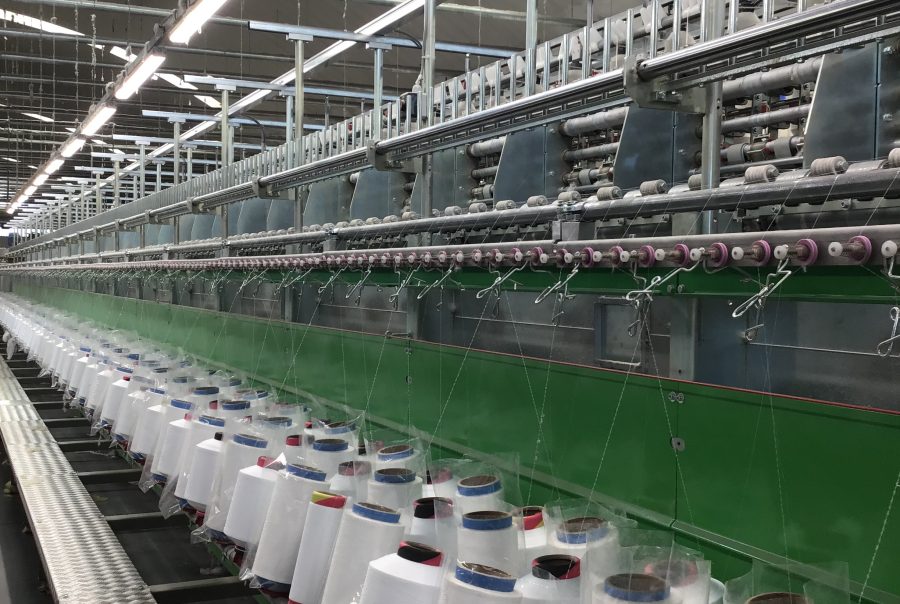

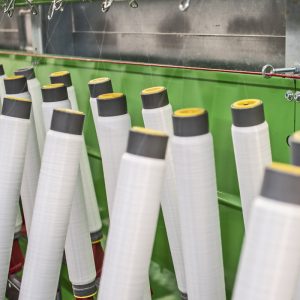

Hollow spindle system with collection on tube, one/two independent drafting lines.

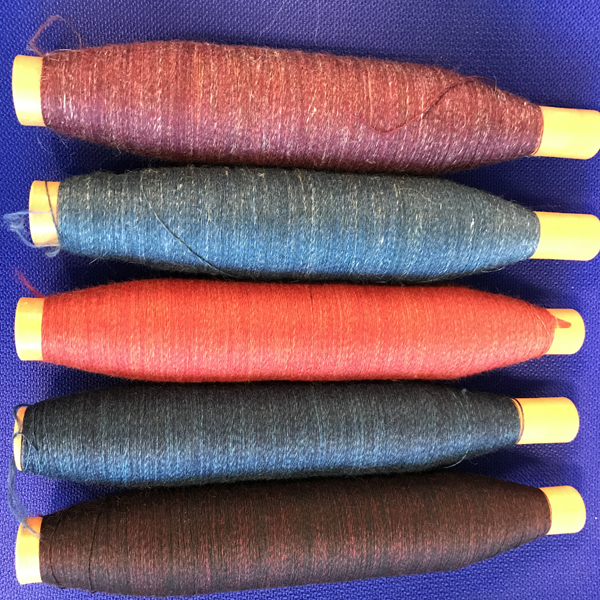

Soft and voluminous yarns, medium/fine counts up to 40 Nm.
The hollow spindle imparts false twists and simultaneously binds the core and the effect yarn. The collection spindle reopens the twists and balances the yarn.
All kinds of fancy yarns, mainly for:
Mode:
Through PC Touch Screen you can enter and save all the work data and technical parameters of the final yarn and control the machine’s funcionalities.
The PLC manages the precise execution of the data, ensuring the exact speed of the axes in a millesimal measure with exceptional results on the quality of the effects of the final product. Extremely easy to enter and edit general and specific data (up to 1000 steps) in a step-by-step or quick mode. Diagnostics for the detection of the state of the machine.
VERSION
ST-1
Gauge [mm]
150 mm
Ring diameter [mm]
115/127/152 mm
Spindles/section
8 (16)
Max spindles
168 (336)
Max draft [times]
999 volte
Torsions
0-9.999
Tube Height [mm]
450 mm
Max ring spindles speed [rpm]
9.400 rpm
Max hollow spindles speed [rpm]
13.000 rpm
Yarn count range [Nm]
1-30 Nm
Installed power [Kw]
55/75 Kw
VERSION
ST-2
Gauge [mm]
200 mm
Ring diameter [mm]
6
Spindles/section
128
VERSION
FL
Gauge [mm]
120/150 mm
Ring diameter [mm]
10/16 (20)
Spindles/section
200 (400)/168 (336)
Max spindles
90/115 mm
Max draft [times]
999 volte
Torsions
0-9.999
Tube Height [mm]
450 mm
Max ring spindles speed [rpm]
9.400 rpm
Max hollow spindles speed [rpm]
13.000 rpm
Yarn count range [Nm]
1-40 Nm
Installed power [Kw]
55/75 Kw
VERSION
ST-1
ST-2
FL
Gauge [mm]
Spindles/section
Max spindles
Ring diameter [mm]
Max draft [times]
Torsions
Tube Height [mm]
Max ring spindles speed [rpm]
Max hollow spindles speed [rpm]
Yarn count range [Nm]
Installed power [Kw]
150 mm
8 (16)
168 (336)
115/127/152 mm
999 volte
0-9.999
450 mm
9.400 rpm
13.000 rpm
1-30 Nm
55/75 Kw
200 mm
6
128
/
/
/
/
/
/
/
/
120/150 mm
10 /16 (20)
200 (400) /168 (336)
90/115 mm
999 volte
0-9.999
450 mm
9.400 rpm
13.000 rpm
1-40 Nm
55/75 Kw
